SKU FD012
ANSI Self Adhesive Flange Disc – 415mm, 14" Neoprene
£39.08incl. VAT
Not sure it's the right size? Ask a person.
Product details

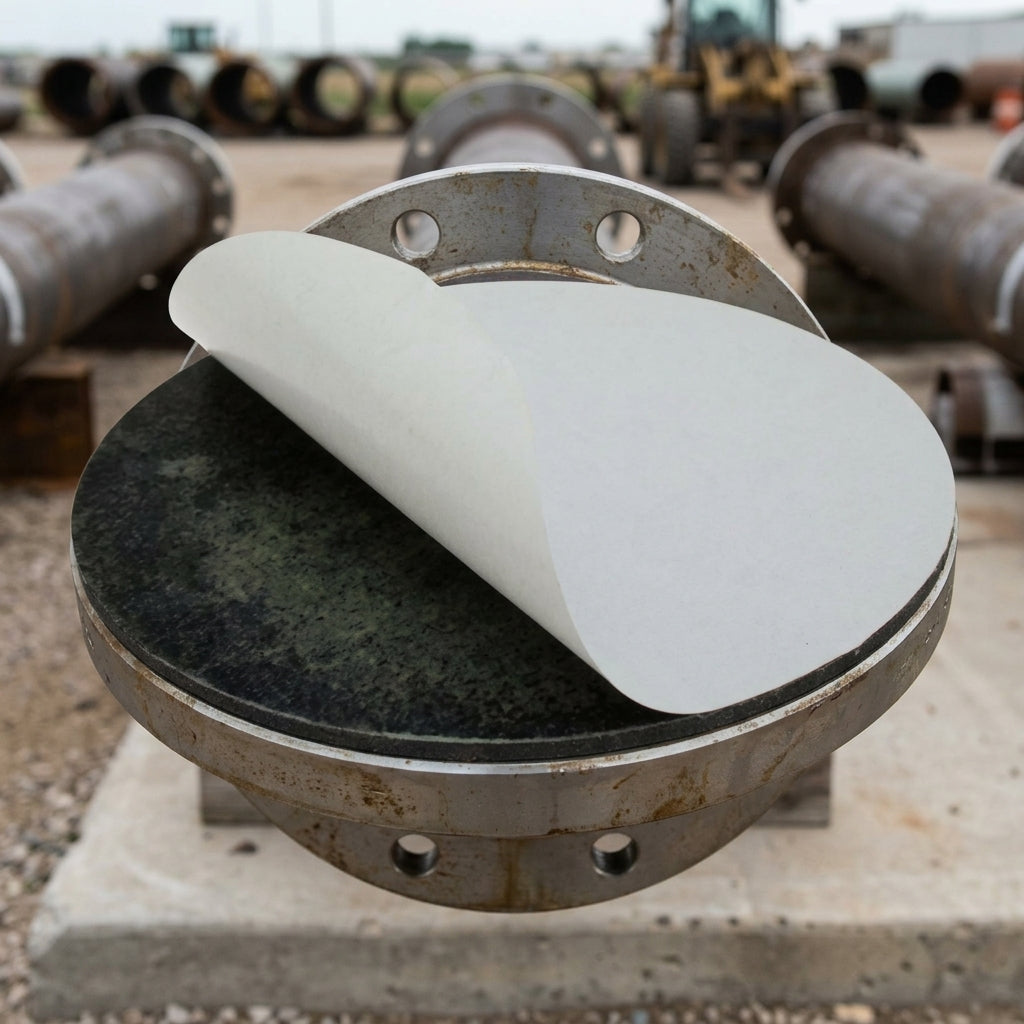

Self-adhesive neoprene rubber disc for ANSI flange protection during storage, transport and installation.
These round protectors shield flanges from contamination, corrosion and mechanical damage. The low-tack adhesive backing adheres securely to the raised face yet removes cleanly without residue, leaving the flange ready for immediate service.
Key Features
- 70 Shore neoprene rubber construction
- Low-tack adhesive backing prevents residue on removal
- Full-face flange protection
- Resistant to acids, alkalis, oils and petroleum products
- Temperature range –15 °C to +100 °C
- Easy application and secure in-place hold
Specifications
- Standard: ANSI
- Nominal size: 14"
- Disc diameter: 415 mm
- Material: neoprene rubber with adhesive backing
Applications
- Oil and gas pipeline systems
- Chemical processing plants
- Water treatment and distribution networks
- Industrial maintenance and flange storage
- Transit protection for flanged pipework
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
