SKU FLC036

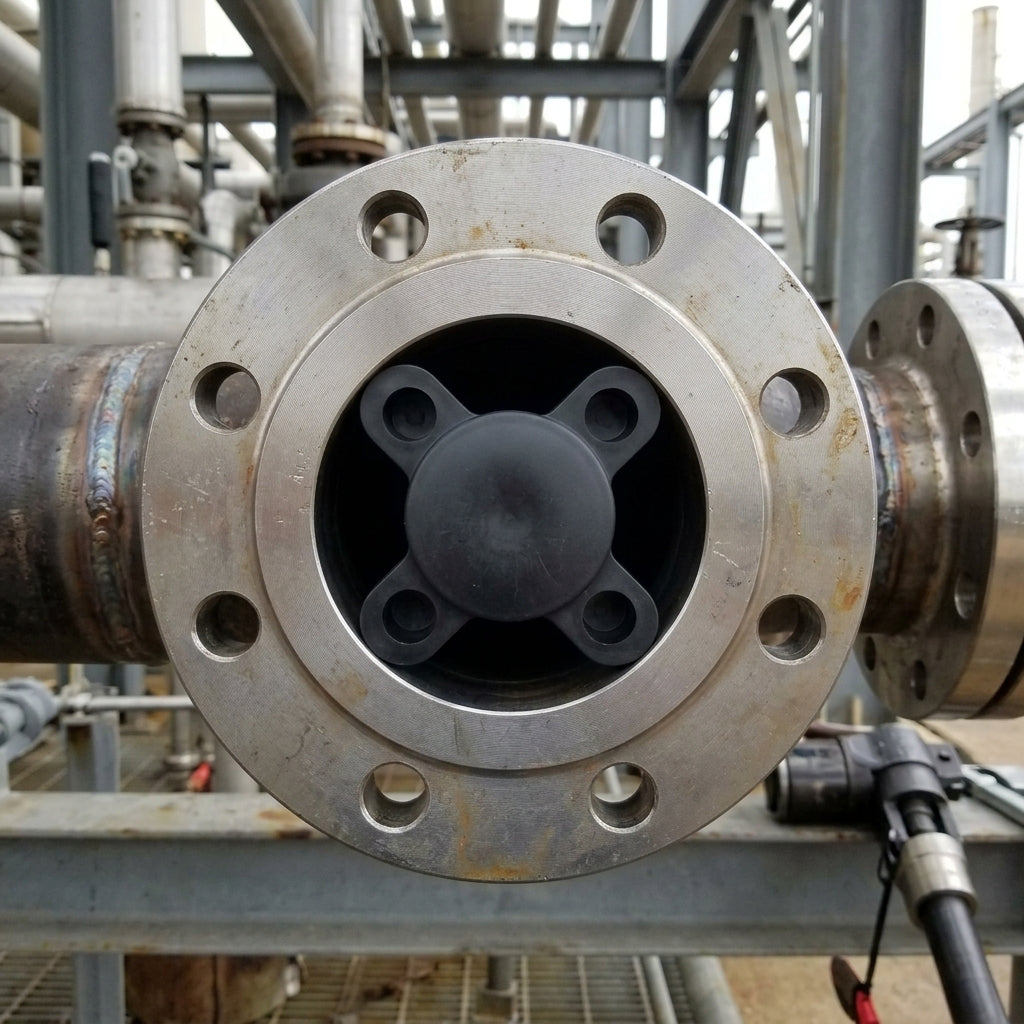

8" Class 900 Flange Stud Hole Insert - Black LDPE
£31.34incl. VAT
Not sure it's the right size? Ask a person.
Product details
Black LDPE stud hole insert designed to protect 8" 900 Class flange faces by pushing into the bolt holes around the flange perimeter.
This flange protection cap shields the sealing surface from moisture, dirt, paint and oils during production, transportation, storage and maintenance work. Four integral ribs engage the stud holes to hold the insert firmly in place without additional fixings. Manufactured from high-density low-pressure polyethylene, it offers a quick, cost-effective solution for minimising damage to flanged equipment on site.
Key Features
- Four ribs insert into flange stud holes for secure fit
- Covers and protects flange face from contamination
- Resists moisture, dirt, paint and most oils
- Simple and quick to install
- Cost-effective flange protection solution
Specifications
- Nominal flange size: 8"
- Pressure class: 900
- Material: LDPE (low-density polyethylene)
- Colour: Black
Applications
- Oil and gas refining production and maintenance
- Hydraulic system flange protection
- Storage and transit protection
- Manufacturing and assembly operations
- Equipment maintenance and servicing
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
