SKU FLC034
8" Class 300 Flange Stud Hole Insert - Black LDPE
£18.00incl. VAT
Not sure it's the right size? Ask a person.
Product details

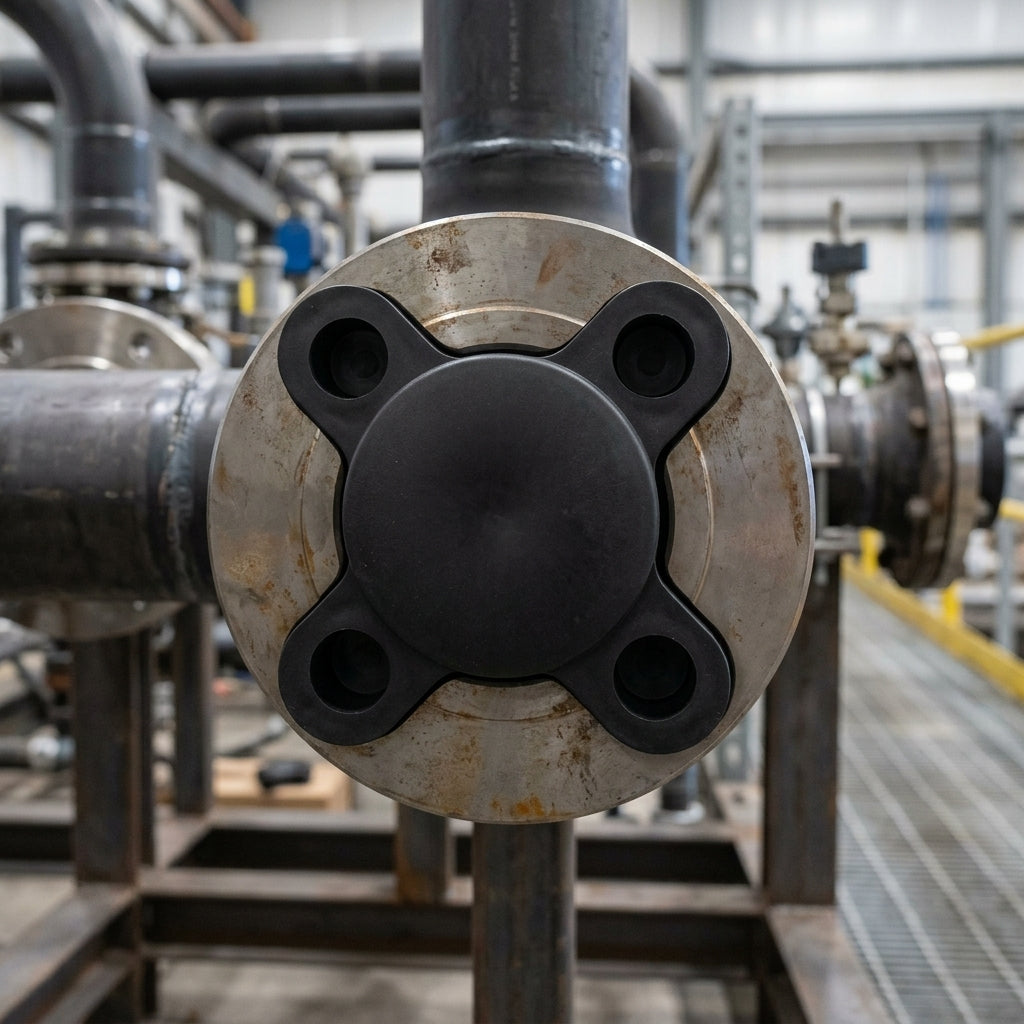

Black LDPE stud hole insert designed to protect 8" 300# flange bolt holes and gasket surfaces from contamination and mechanical damage.
These inserts feature four ribs that push into the stud holes around a flange face, providing full coverage without entering the bore. Moulded from high-quality low-density polyethylene, they resist moisture, dirt, paint and most oils, making them ideal for use during production, transportation, storage and maintenance work.
Key Features
- Four ribs grip stud holes for secure, tool-free installation
- Full flange face coverage protects gasket sealing surfaces
- LDPE material resists moisture, dirt, paint and most oils
- Quick and cost-effective flange protection solution
- Suitable for oil and gas, refining and hydraulics applications
Specifications
- Nominal flange size: 8"
- Pressure rating: 300#
- Material: LDPE (low-density polyethylene)
- Colour: Black
- Stud hole retention: Four ribs
Applications
- Production line flange protection
- Flange storage and warehousing
- Transportation and logistics
- Maintenance and turnaround work
- Oil, gas and refinery operations
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
