SKU FD008

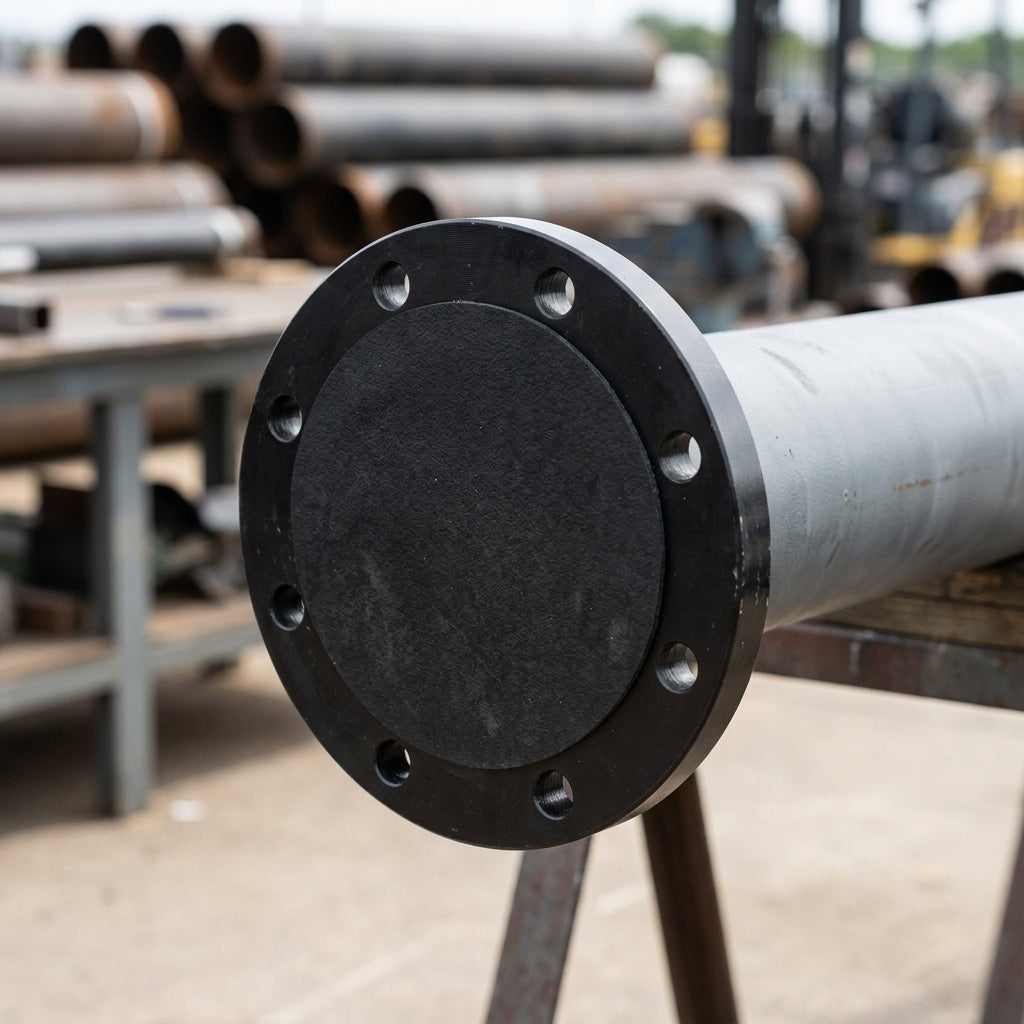

6" ANSI Self-Adhesive Flange Disc - 220mm, Neoprene
£13.06incl. VAT
Not sure it's the right size? Ask a person.
Product details
Self-adhesive neoprene rubber disc for full-face protection of 6" ANSI flanges during storage, transport and installation.
These round protectors are manufactured from 70 Shore neoprene rubber with integrated low-tack adhesive backing. The disc adheres securely to the flange face without leaving residue or causing surface damage on removal, keeping the sealing surface clean and ready for immediate service.
Key Features
- Neoprene rubber construction, 70 Shore hardness
- Low-tack adhesive backing for clean removal
- Protects flange face from dirt, moisture and mechanical damage
- Resistant to acids, alkalis, oils and petrol
- Operating temperature range −15 °C to +100 °C
- Full-face coverage for 6" ANSI flanges
Specifications
- Standard: ANSI
- Nominal flange size: 6"
- Disc diameter: 220mm
- Material: Neoprene rubber
- Adhesive type: Low-tack backing
Applications
- Oil and gas pipeline protection
- Water system maintenance and storage
- Chemical processing plant flanges
- Industrial pipe fabrication and stock management
- Transit and warehouse storage protection
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
