SKU FD016

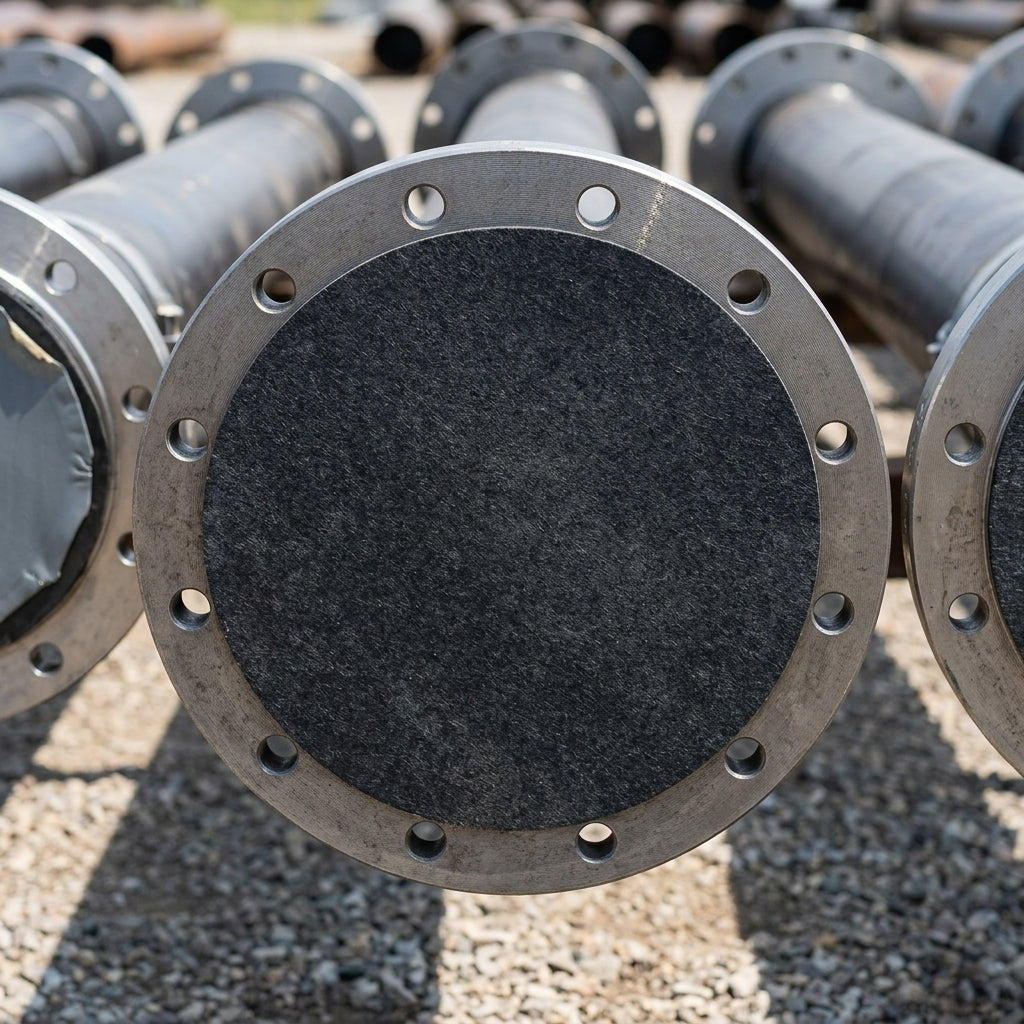

24" ANSI Self Adhesive Flange Disc - 700mm, Neoprene
£93.22incl. VAT
Not sure it's the right size? Ask a person.
Product details
Self-adhesive neoprene rubber disc for full-face protection of 24" ANSI flanges during storage, transit and installation.
These round protectors combine durable neoprene rubber with a low-tack adhesive backing that adheres securely to the flange face without leaving residue on removal. They shield the sealing surface from contamination, corrosion and mechanical damage in demanding industrial environments.
Key Features
- 70 Shore hardness neoprene rubber construction
- Low-tack adhesive backing for clean, residue-free removal
- Maintains full-face coverage of flange gasket area
- Temperature range −15 °C to +100 °C
- Resistant to acids, alkalis, oils and petrol
- Cost-effective consumable protection
Specifications
- Standard: ANSI
- Nominal flange size: 24"
- Disc diameter: 700 mm
- Material: neoprene rubber
- Backing: low-tack adhesive
Applications
- Oil and gas pipeline systems
- Water and chemical processing plants
- Storage and warehouse protection
- Transportation and logistics
- Industrial maintenance and commissioning
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
