SKU FLC020-B

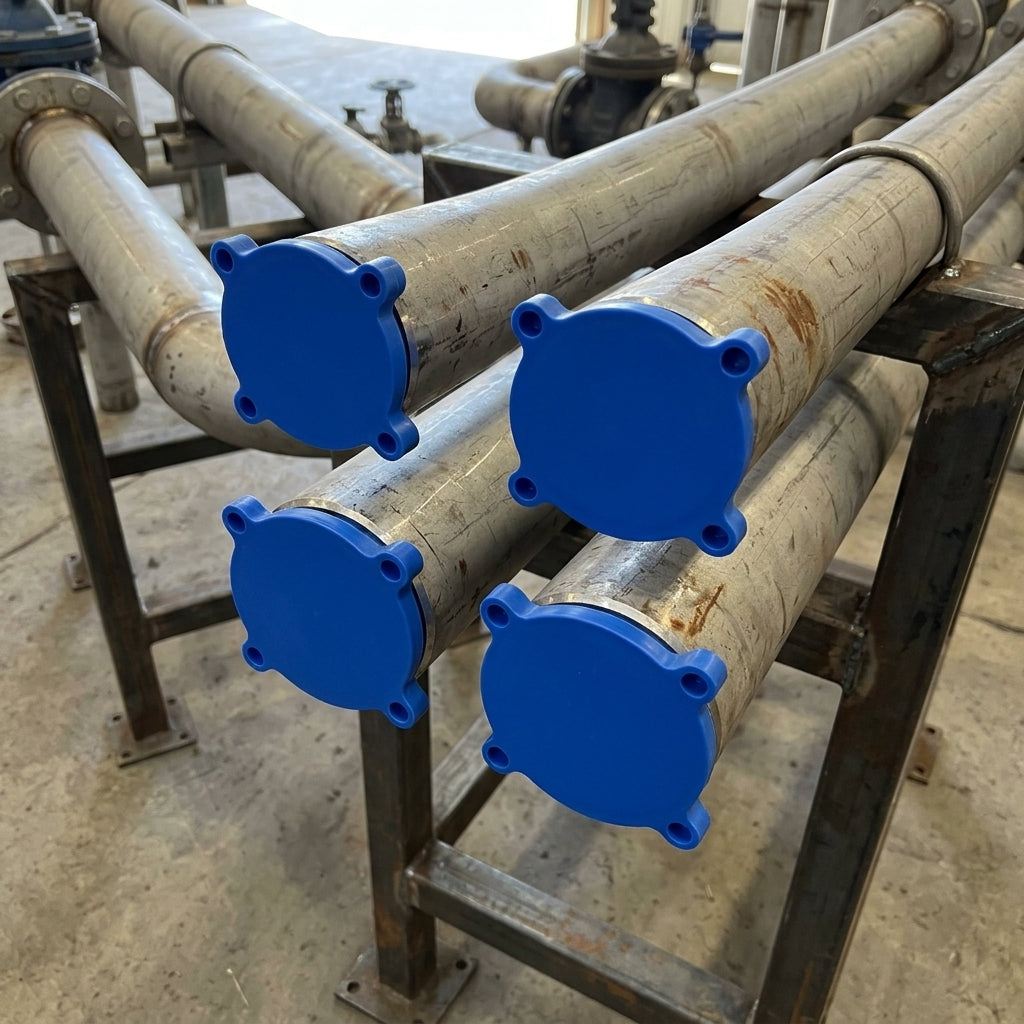

2½" Class 300/600 Flange Stud Hole Insert - Blue LDPE
£12.46incl. VAT
Not sure it's the right size? Ask a person.
Product details
Plastic stud hole insert that plugs the bolt holes of a 2.5" flange to protect the sealing surface during storage, transit and maintenance.
These inserts feature four ribs that anchor into the stud holes of the flange, holding the protector firmly in place over the flange face. Manufactured from durable LDPE, they resist moisture, dirt, paint splatter and most oils, making them ideal for protecting costly flange equipment in refining, hydraulics and oil and gas operations.
Key Features
- Four ribs that grip into flange stud holes for secure fit
- LDPE construction resists moisture, dirt and oils
- Quick to fit and remove – no tools required
- Cost-effective alternative to full-face protectors
- Suitable for 300/600 Class pressure ratings
Specifications
- Material: LDPE
- Colour: Blue
- Nominal Size: 2.5"
- Class Rating: 300/600
Applications
- Flange protection during production and assembly
- Transit and storage of piping assemblies
- Maintenance and shutdown procedures
- Oil and gas refining operations
- Hydraulic systems and plant equipment
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
