10" Class 300 Flange Stud Hole Insert - Black LDPE

Stud hole insert with four ribs that engage the bolt holes of a large flange to protect the sealing face from damage, dirt and moisture.

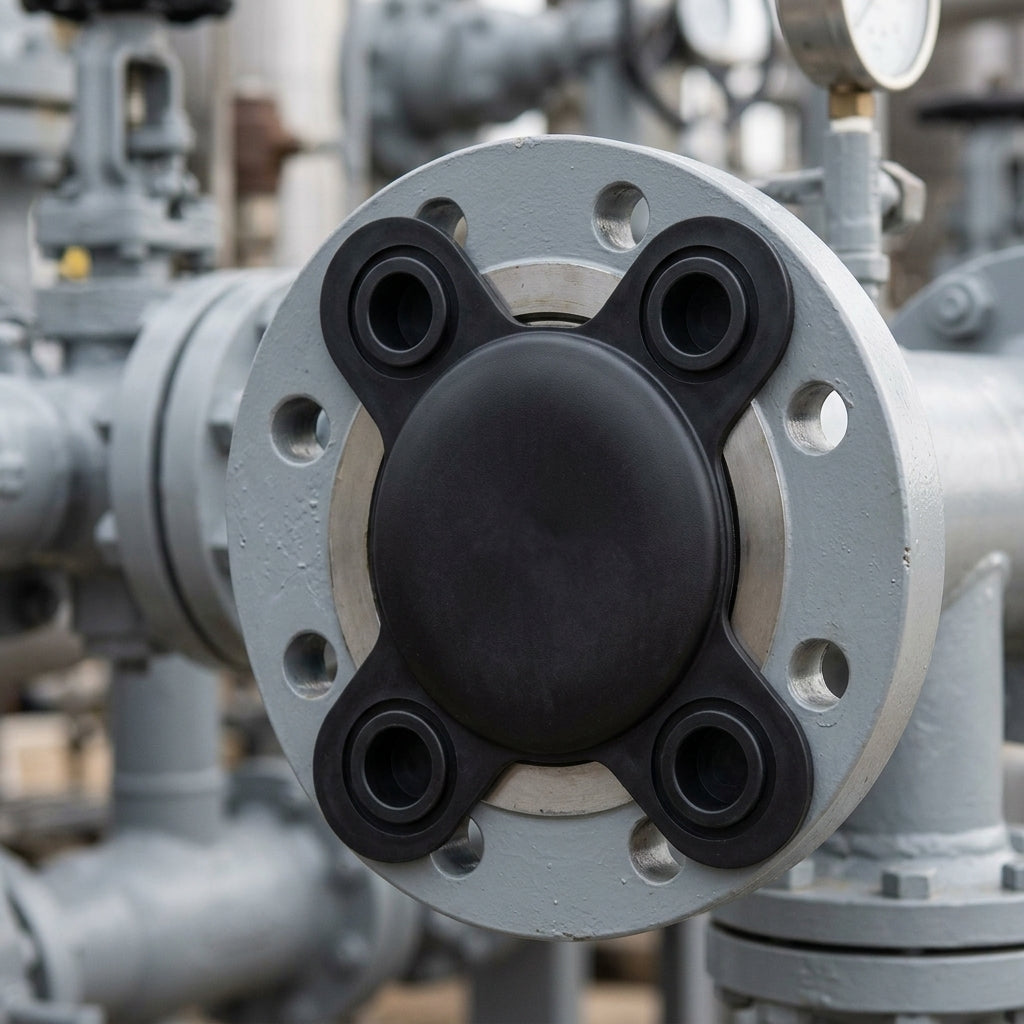

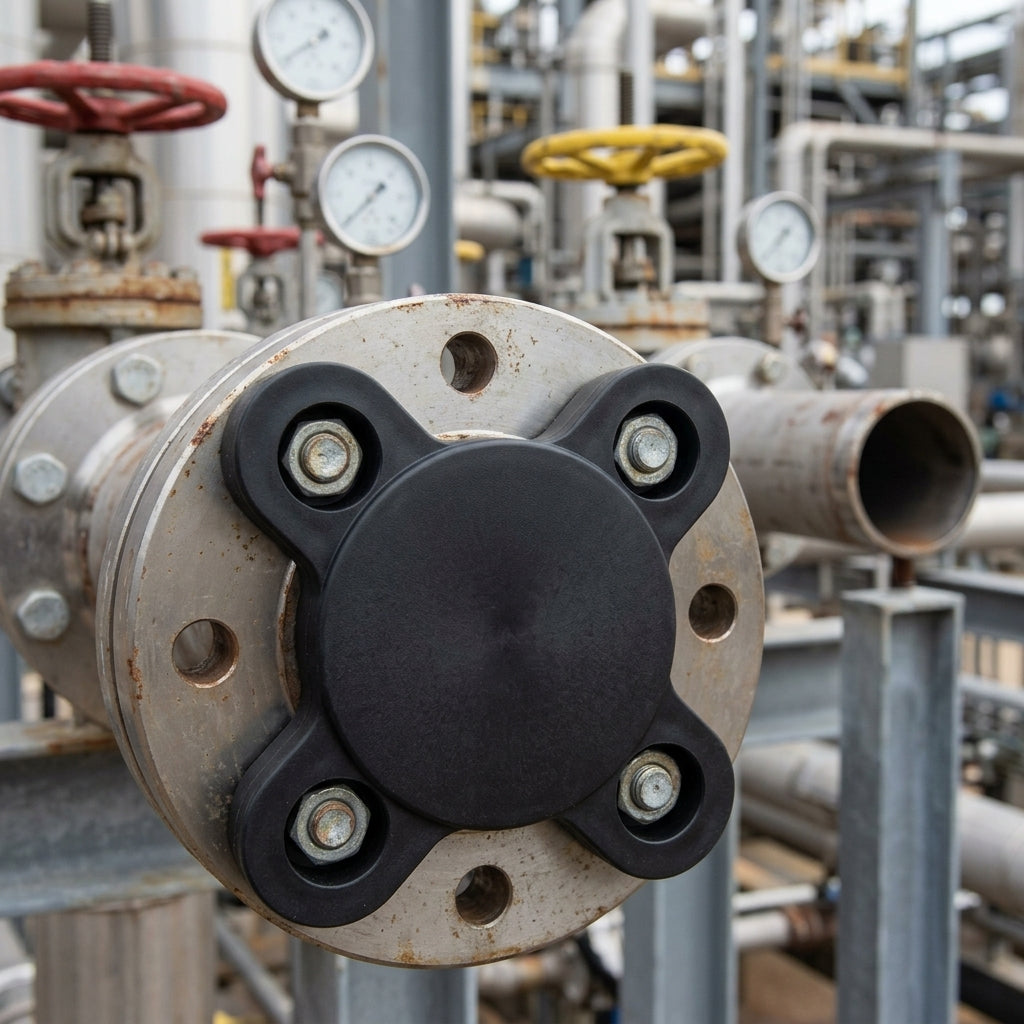

This flange protector fits over the raised face of a DN 250 300 Class flange, with four integral ribs that locate into the stud holes to hold the cap securely in place. Moulded from rigid LDPE, it shields the gasket face and bolt threads during production, transport and storage, and resists moisture, dirt, paint and most mineral oils. Quick and cost-effective to fit, it is widely used in oil and gas refining, hydraulic plant and pipe fabrication.

Key Features

• Four ribs engage flange stud holes for secure location
• Rigid LDPE construction
• Protects gasket face, sealing surface and bolt threads
• Resistant to moisture, dirt, paint and oils
• Simple, tool-free installation

Specifications

• Nominal diameter: DN 250 (10")
• Pressure class: 300
• Material: LDPE
• Colour: Black

Applications

• Oil and gas refining operations
• Hydraulic systems and equipment
• Flange protection during manufacture and assembly
• Storage and transit of pipe flanges
• Maintenance and plant shutdowns
