SKU FLC014

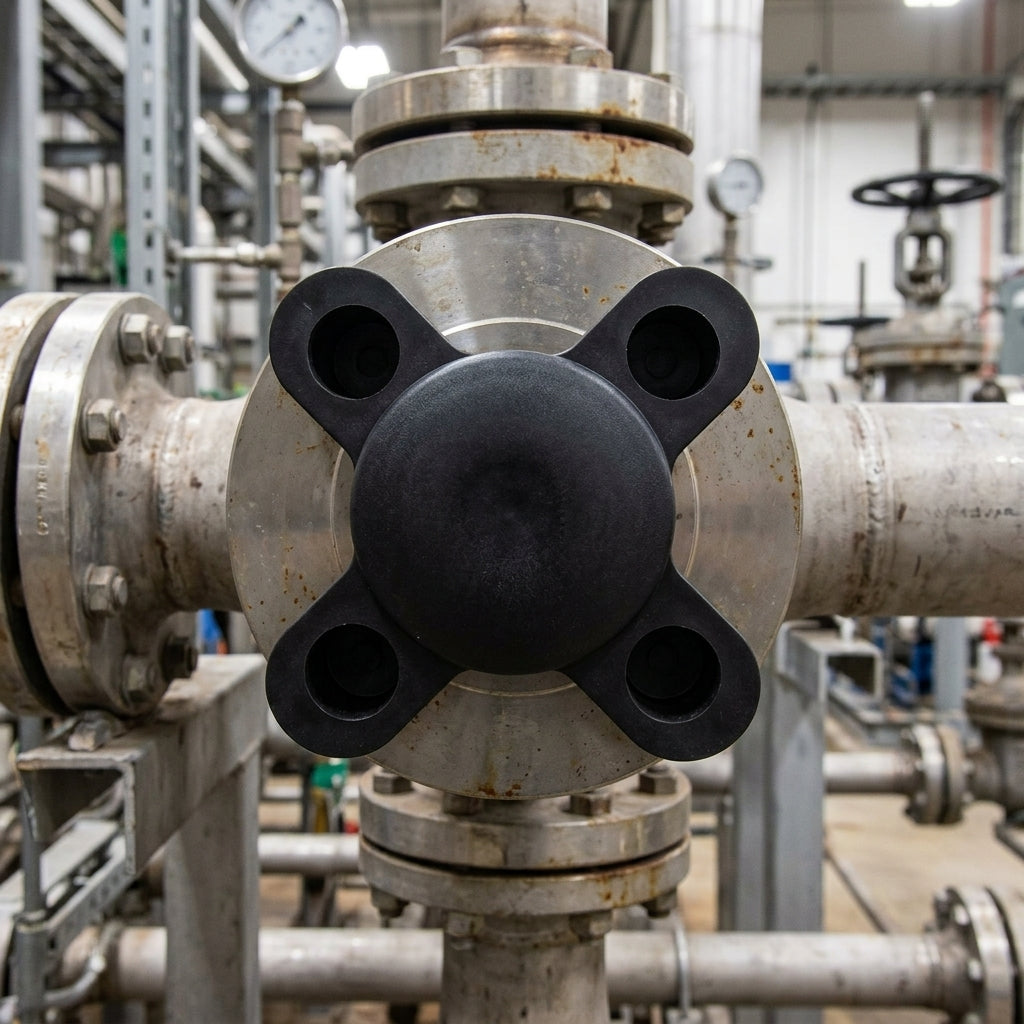

1½" Class 300/600 Flange Stud Hole Insert - Black LDPE
£6.00incl. VAT
Not sure it's the right size? Ask a person.
Product details
Stud hole insert cap that protects flange faces by pushing into the bolt holes of a 1½" ANSI flange.
This flange protector is moulded from high-density polyethylene with four integral ribs that engage the stud holes around the flange perimeter. It seals and shields the gasket face from moisture, dust, paint overspray and light oil exposure during fabrication, transport, warehousing and plant maintenance. Quick to fit and reusable, it offers cost-effective protection for critical flange equipment.
Key Features
- Four ribs moulded to engage standard flange stud holes
- Covers and protects the flange gasket face completely
- Resists moisture, dirt, paint and most oils
- Easy and quick to install and remove
- Manufactured from durable LDPE plastic
- Reusable across multiple handling cycles
Specifications
- Nominal flange size: 1½" ANSI
- Pressure rating: 300/600 class
- Material: LDPE (low-density polyethylene)
- Colour: Black
- Design: Stud hole insert with four engagement ribs
Applications
- Oil and gas refining plant flange protection
- Hydraulic systems and equipment storage
- Flange face protection during production and assembly
- Transit and warehouse protection for finished pipework
- Maintenance operations and equipment layup
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
