SKU FLC008

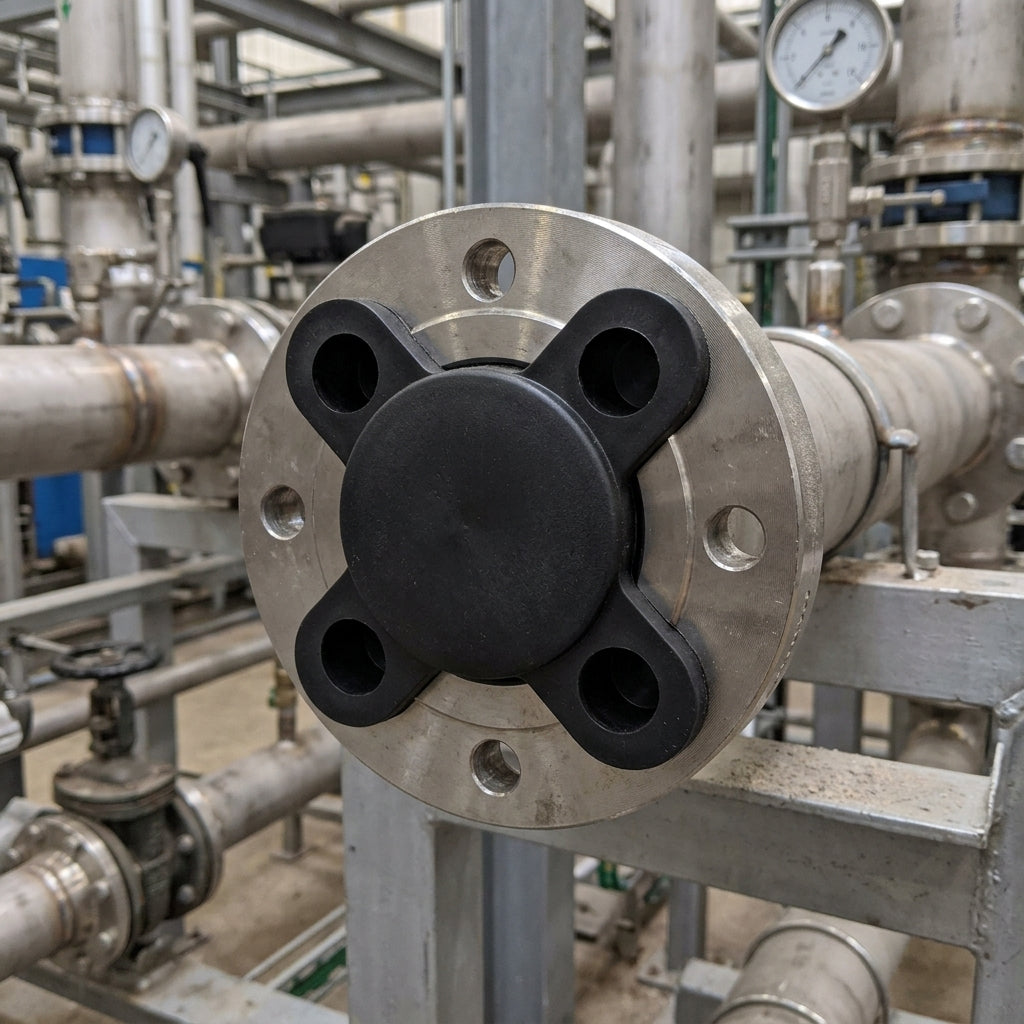

1" Class 300/600 Flange Stud Hole Insert - Black LDPE
Not sure it's the right size? Ask a person.
Product details
Four-rib stud hole insert that pushes into bolt holes to protect flange faces from damage, dirt, moisture and contamination.
Designed for 1" nominal diameter flanges rated 300/600 class, these inserts offer a quick-fit alternative to full-face flange caps. The four ribs engage the stud holes around the flange perimeter, holding the insert securely in place during production, transport, storage and maintenance work. LDPE construction provides chemical resistance to oils, water and most industrial solvents.
Key Features
- Four ribs push into stud holes for secure fit
- LDPE plastic material resists moisture, dirt, paint and oils
- Quick and cost-effective flange protection
- Suitable for 1" nominal diameter flanges, 300/600 class pressure rating
- Widely used in oil and gas refining and hydraulic applications
Specifications
- Nominal flange diameter: 1"
- Pressure class: 300/600
- Material: LDPE (low-density polyethylene)
- Colour: Black
- Design: Four stud hole engaging ribs
Applications
- Flange protection during manufacturing and assembly
- Transport and storage of flanged pipework
- Maintenance and inspection intervals
- Oil and gas refining operations
- Hydraulic systems and equipment
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
