SKU FLC013-B

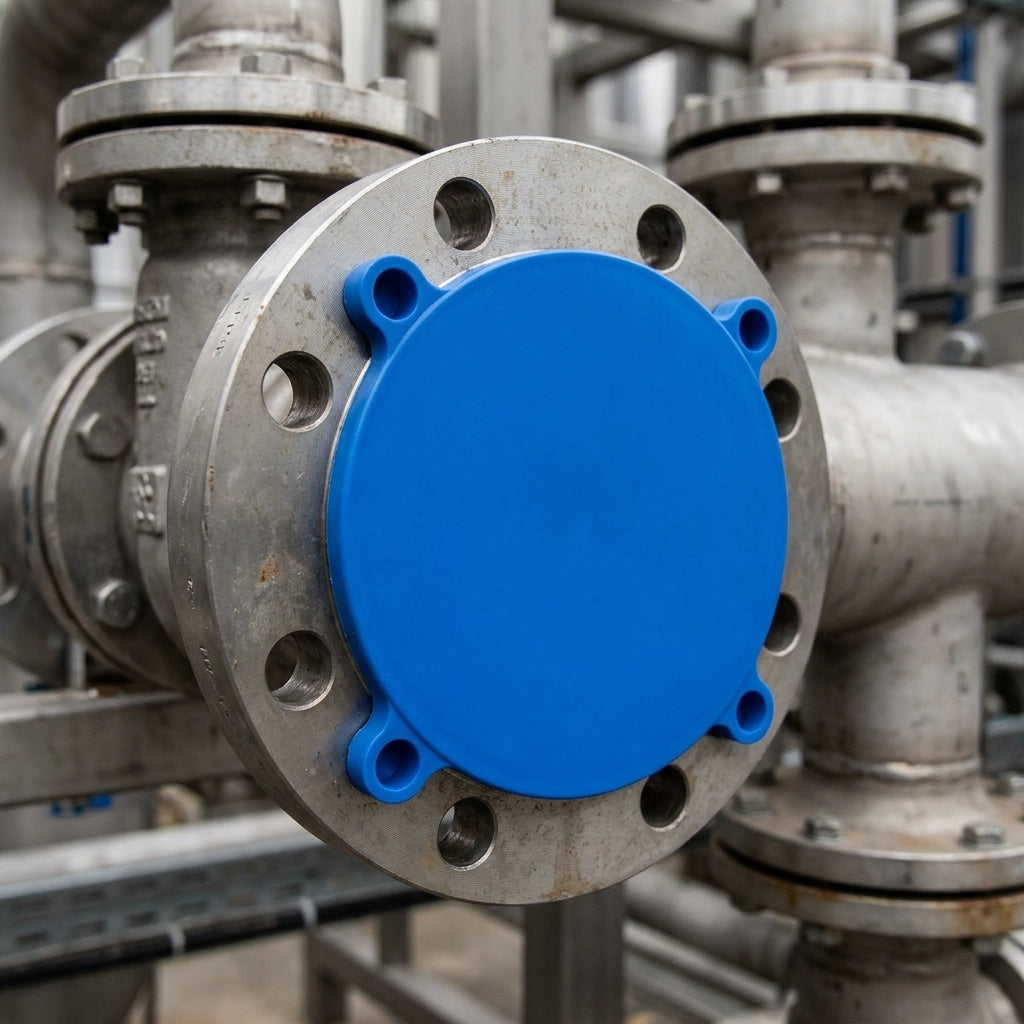

1½" Class 150 Flange Stud Hole Insert - Blue LDPE
£6.00incl. VAT
Not sure it's the right size? Ask a person.
Product details
Plastic stud hole insert with four ribs that push into flange bolt holes to protect the gasket face from contamination and mechanical damage.
These inserts are designed for 1½" nominal diameter flanges rated 150 Class. Manufactured from high-density polyethylene (LDPE), they provide a quick, cost-effective protection solution during production, transportation, storage and maintenance work. The four ribs grip the stud holes securely and keep the insert in place without requiring tools or additional fixings.
Key Features
- Four ribs engage bolt holes for secure fit
- Protects flange face and gasket sealing surface
- Shields against moisture, dirt, paint and most oils
- Simple push-fit installation, no tools required
- Durable LDPE construction
- Suitable for hydraulic and oil & gas applications
Specifications
- Material: LDPE
- Colour: Blue
- Nominal Diameter: 1½"
- Pressure Rating: 150 Class
Applications
- Oil and gas refining pipework
- Hydraulic system flanges
- Temporary flange protection during maintenance
- Storage and transit protection
- Pipe flange end sealing
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
