SKU FLC013

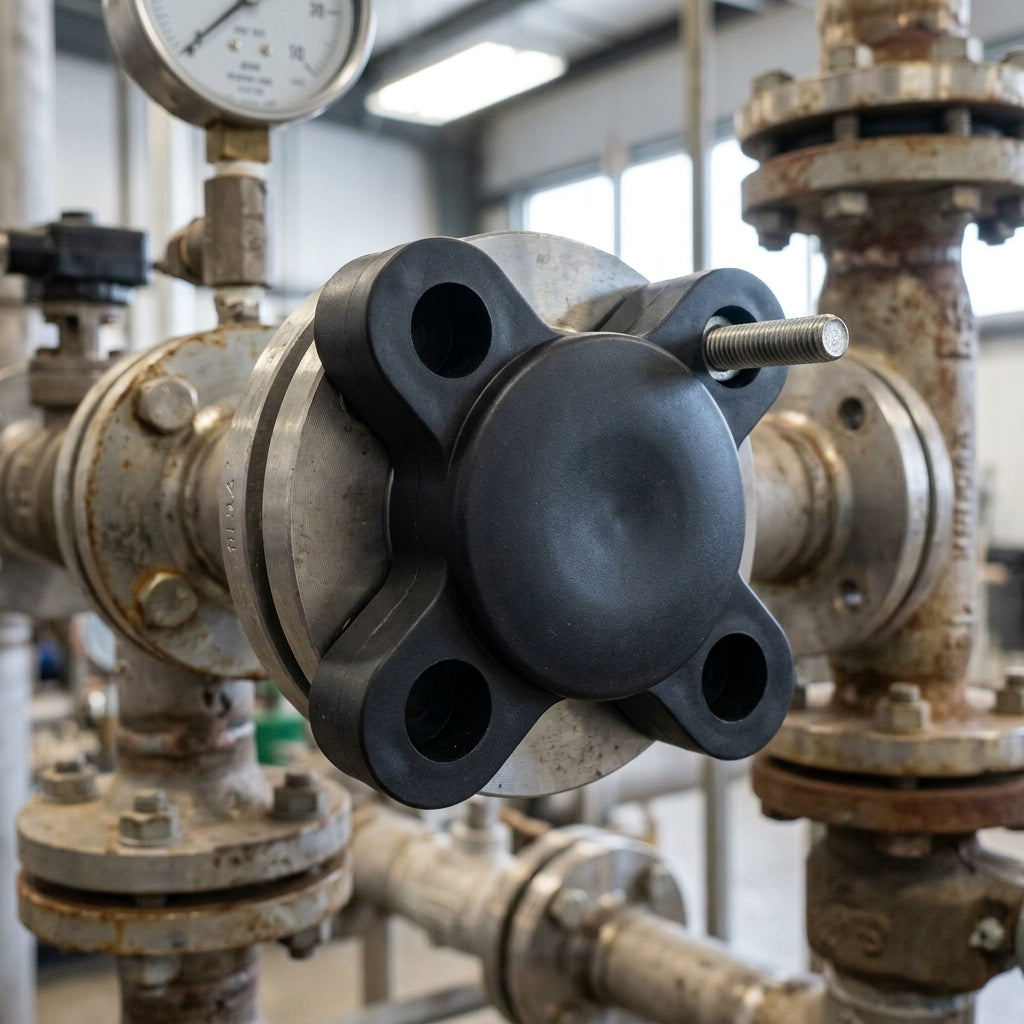

1½" Class 150 Flange Stud Hole Insert - Black LDPE
£6.00incl. VAT
Not sure it's the right size? Ask a person.
Product details
Stud hole insert designed to protect flange faces by gripping the bolt holes with four internal ribs.
This LDPE insert slides over the raised face of a 1½" 150 Class flange, with four ribs engaging the stud holes to hold it firmly in place. It shields the gasket sealing surface from moisture, dirt, paint overspray and mineral oils during production, transportation, storage and maintenance work. Widely used in oil and gas refining and hydraulic systems where flange face protection is critical and downtime must be minimised.
Key Features
- Four internal ribs grip the stud holes for secure, tool-free fit
- Manufactured from durable LDPE plastic
- Protects gasket face from moisture, dirt, paint and oils
- Quick and cost-effective to install and remove
- Ideal for high-value flange assemblies
Specifications
- Nominal flange size: 1½"
- Pressure rating: 150 Class
- Material: Low-density polyethylene (LDPE)
- Colour: Black
- Attachment method: Stud hole ribs
Applications
- Oil and gas refining facilities
- Hydraulic systems and circuits
- Flange protection during storage and transit
- Production line and maintenance operations
- Protection of costly high-specification flanges
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
