SKU FLC010

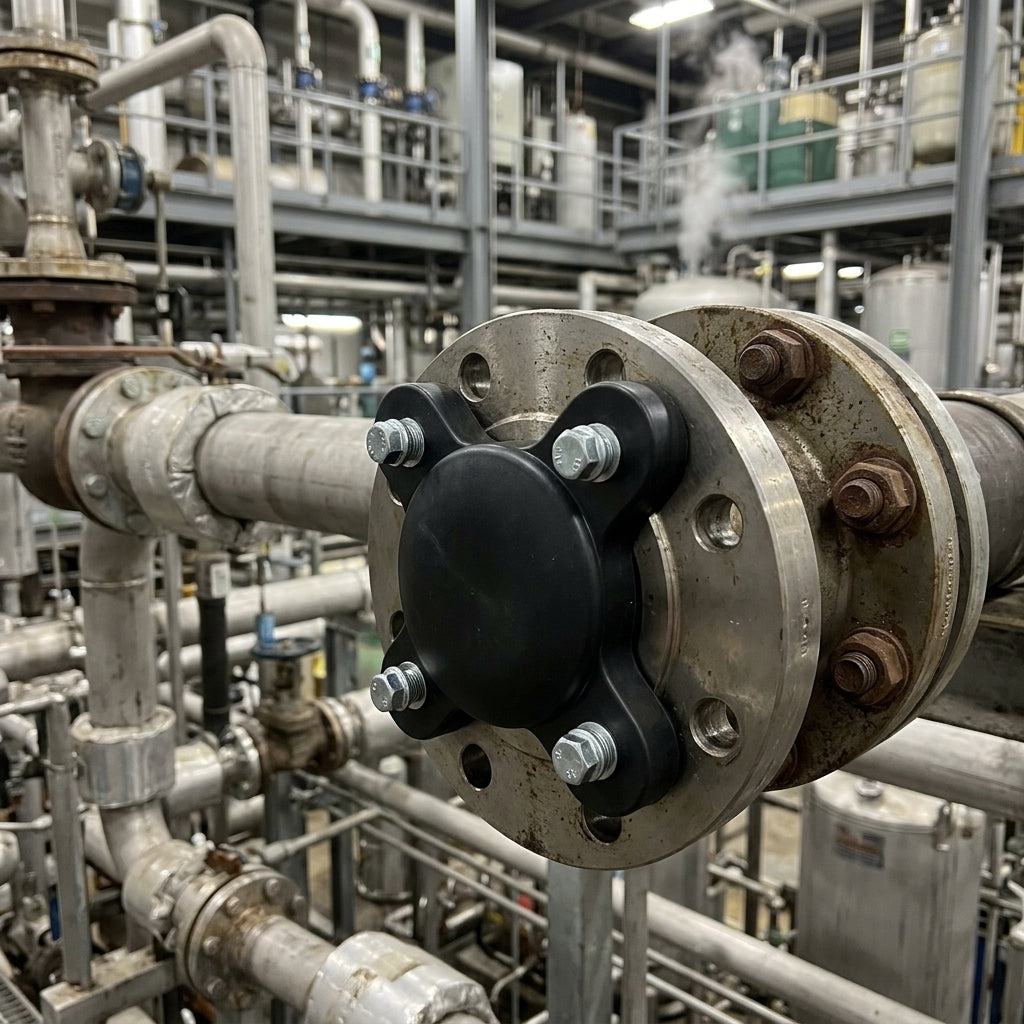

1¼" Class 150 Flange Stud Hole Insert - Black LDPE
£6.00incl. VAT
Not sure it's the right size? Ask a person.
Product details
Stud hole insert cap designed to protect flange faces and bolt holes from damage, dirt and moisture.
This insert features four ribs that push into the stud holes around a flange face, providing quick and cost-effective protection. Manufactured from high-density polyethylene (LDPE), it resists moisture, dirt, paint and most oils, making it ideal for use during production, transportation, storage and maintenance work.
Key Features
- Four ribs engage stud holes for secure fit and easy installation
- Protects flange faces from moisture, dirt, paint and oil contamination
- High-quality LDPE material for durability and chemical resistance
- Lightweight and cost-effective protection solution
- Suitable for use across multiple industrial cycles
Specifications
- Nominal size: 1¼" ANSI
- Pressure rating: 150 Class
- Material: LDPE (low-density polyethylene)
- Colour: Black
- Stud hole engagement: 4-rib design
Applications
- Oil and gas refining flange protection
- Hydraulic system flange covers
- Industrial maintenance and storage
- Production and transportation protection
- Prevention of gasket face damage and contamination
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
