SKU FD014

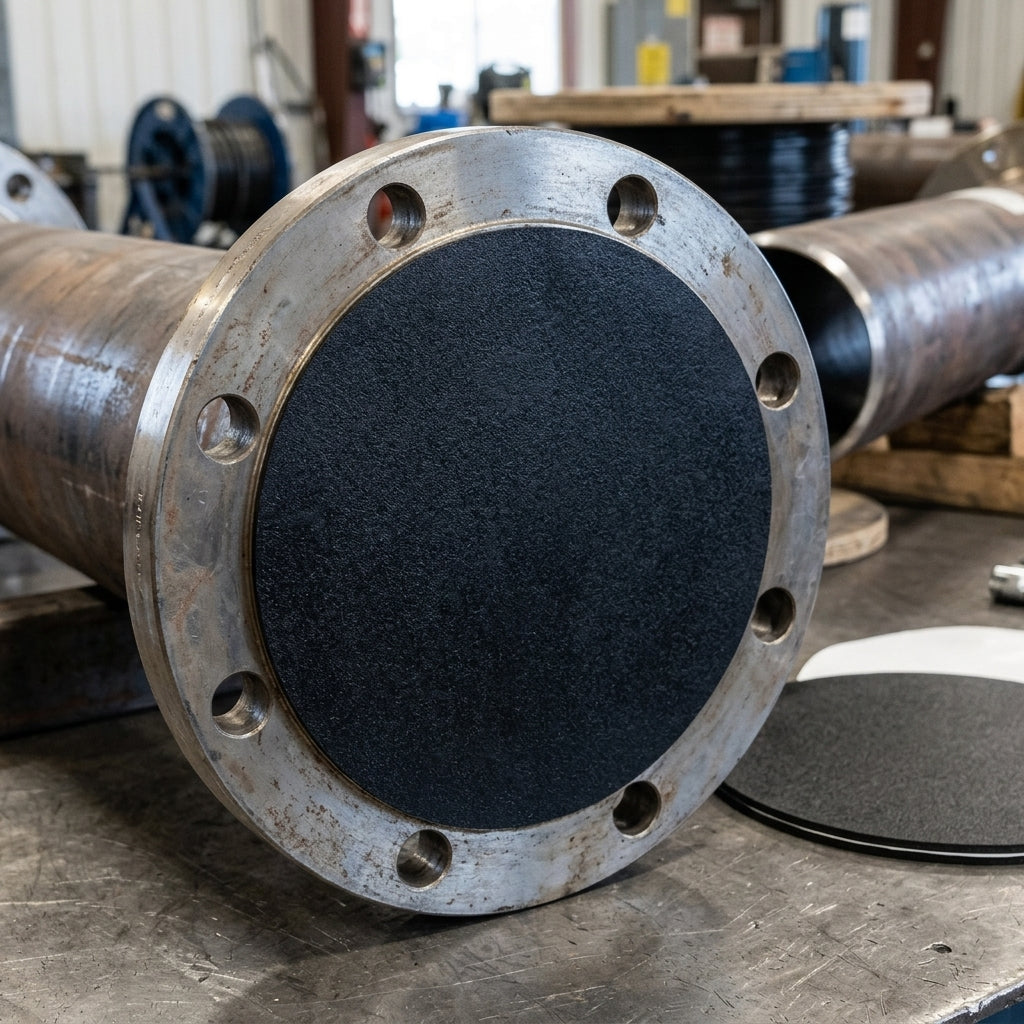

18" ANSI Self Adhesive Flange Disc - 540mm, Neoprene
Not sure it's the right size? Ask a person.
Product details
Self-adhesive neoprene rubber disc that shields ANSI 18" flanges from contamination, corrosion and mechanical damage during storage and transit.
These round protectors feature an integrated low-tack adhesive backing that holds the disc securely in place without damaging the flange face or leaving residue. Manufactured from durable 70 Shore neoprene, they resist acids, alkalis, oils and petrol across a working temperature range of -15°C to +100°C.
Key Features
- 70 Shore neoprene rubber construction
- Low-tack adhesive backing for clean removal
- Full-face gasket protection
- Resistant to acids, alkalis, oils and petrol
- Maintains integrity across -15°C to +100°C temperature range
Specifications
- Standard: ANSI
- Nominal flange size: 18"
- Disc diameter: 540mm
- Material: Neoprene rubber, 70 Shore
- Backing: Low-tack adhesive
Applications
- Flange gasket face protection in oil and gas installations
- Contamination prevention during pipe storage and handling
- Transit protection for industrial pipework assemblies
- Water treatment and chemical processing systems
- Maintenance consumable for plant and site teams
Sizing questions
Which disc size do I need?
Pick the disc for your flange standard and nominal size. The disc diameter is in the title so you can check it against the flange face.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
Does it come off before assembly?
Yes — peel the disc off before the gasket goes in.
