SKU FCC138

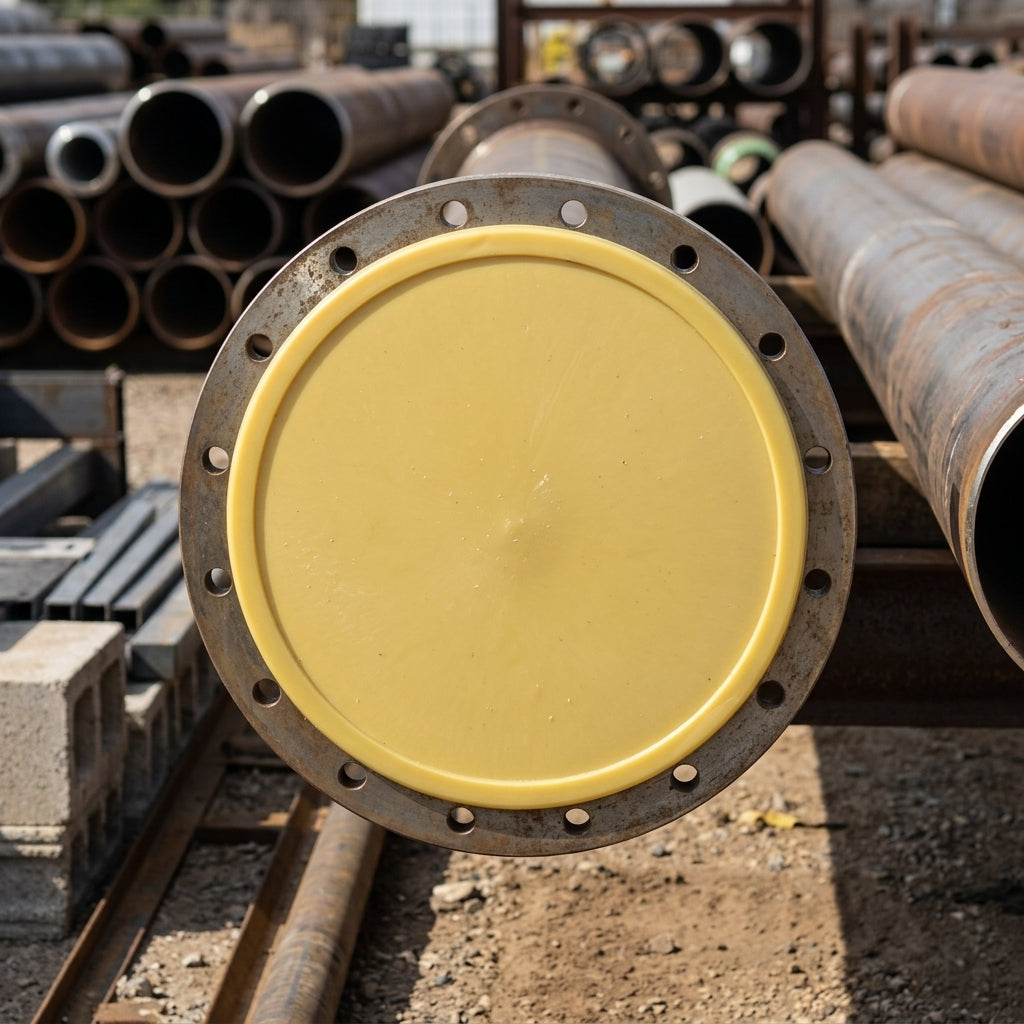

16" ANSI Flange Cover Cap - 647.7mm ID, Polyethylene
Not sure it's the right size? Ask a person.
Product details
Polyethylene flange cover cap for 16" ANSI flanges, protecting gasket faces and sealing surfaces from dirt, moisture and impact.
This rigid polyethylene cap slides over the raised face of a 16" ANSI flange to seal the bore and shield the sealing surface during storage, handling and on-site assembly. Designed for Pressure Series 300 applications, it provides a secure temporary barrier that prevents costly rework and maintains flange integrity through the supply chain and field operations.
Key Features
- Pressure Series 300 rated for ANSI compliance
- Internal diameter 647.7mm matched to 16" ANSI flange bore
- Internal length 57.1mm accommodates raised flange faces
- Rigid polyethylene resists chemical attack and UV degradation
- Reusable across multiple flange cycles
Specifications
- Standard: ANSI
- Nominal size: 16"
- Internal diameter: 647.7mm
- Internal length: 57.1mm
- Material: Polyethylene (PE)
- Pressure rating: Series 300
Applications
- Pipeline construction and maintenance in oil and gas operations
- Water treatment and utility distribution networks
- Flange protection during transit and temporary storage
- On-site assembly and installation workflows
- Protection against dust, dirt and moisture ingress
Sizing questions
How do I pick the right cap?
Measure the outside diameter (OD) of the flange. The cap inside diameter (ID) should match it.
Why are there two caps for one size?
Flange outside diameters vary with the pressure class, so some sizes come with more than one cap ID. Measure the OD and pick the ID that matches.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
