SKU FLC040

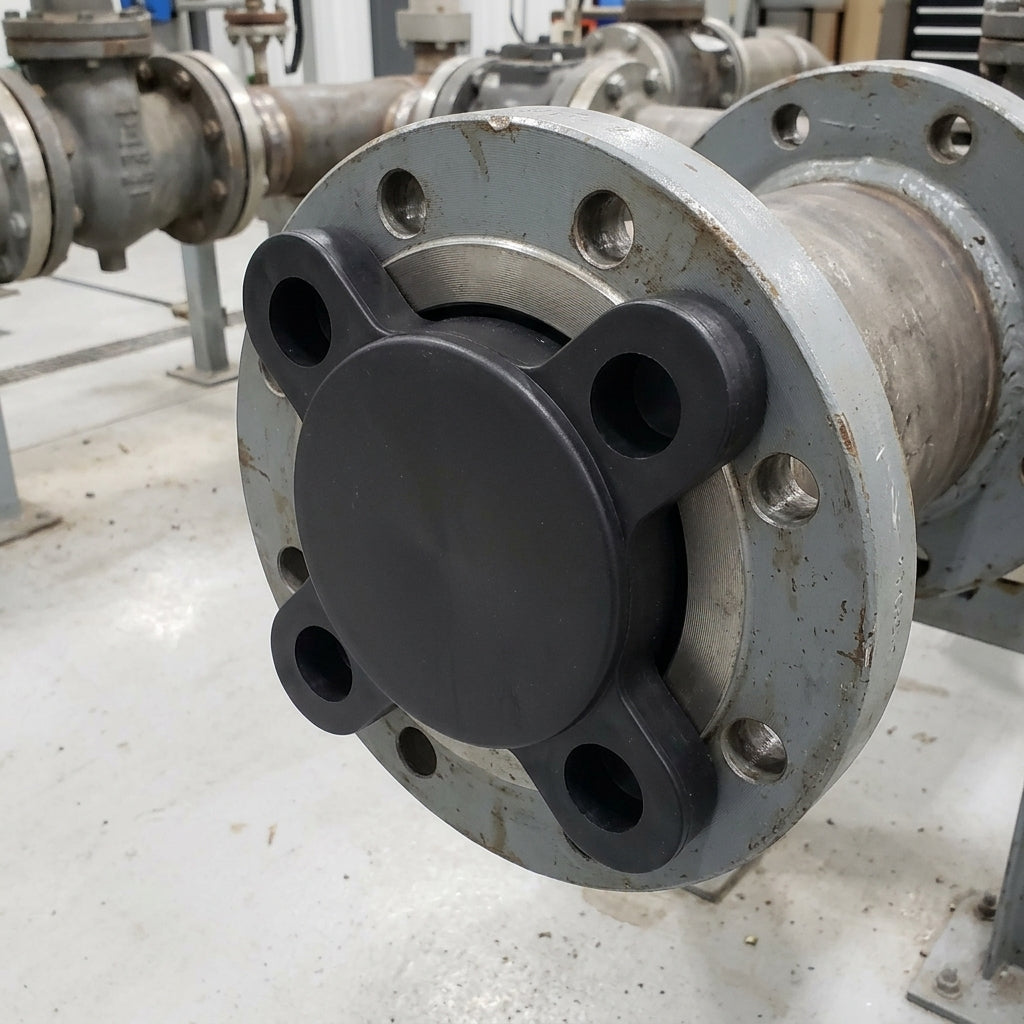

10" Class 900 Flange Stud Hole Insert - Black LDPE
Not sure it's the right size? Ask a person.
Product details
Black LDPE stud hole insert designed to protect 10" ANSI Class 900 flange faces and bolt holes.
This flange stud hole insert features four ribs that push into the bolt holes around the flange perimeter, creating a full-face protective cover. Manufactured from high-density polyethylene (LDPE), it shields the gasket sealing surface from moisture, dirt, paint and oil contamination during production, transportation, storage and maintenance work.
Key Features
- Four ribs engage flange bolt holes for secure, tool-free fitting
- Full-face coverage protects gasket sealing surface
- High-quality LDPE resists moisture, dirt, paint and most oils
- Quick and cost-effective installation—no tools required
- Suitable for Class 900 pressure-rated flanges
Specifications
- Nominal flange size: 10" ANSI
- Pressure rating: 900 Class
- Material: LDPE (low-density polyethylene)
- Colour: Black
- Design: Stud hole insert with four engagement ribs
Applications
- Oil and gas refining and production facilities
- Hydraulic equipment and systems
- Flange protection during manufacturing and assembly
- In-service maintenance and equipment downtime
- Pipe and flange storage and logistics
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
