SKU FLC008-B

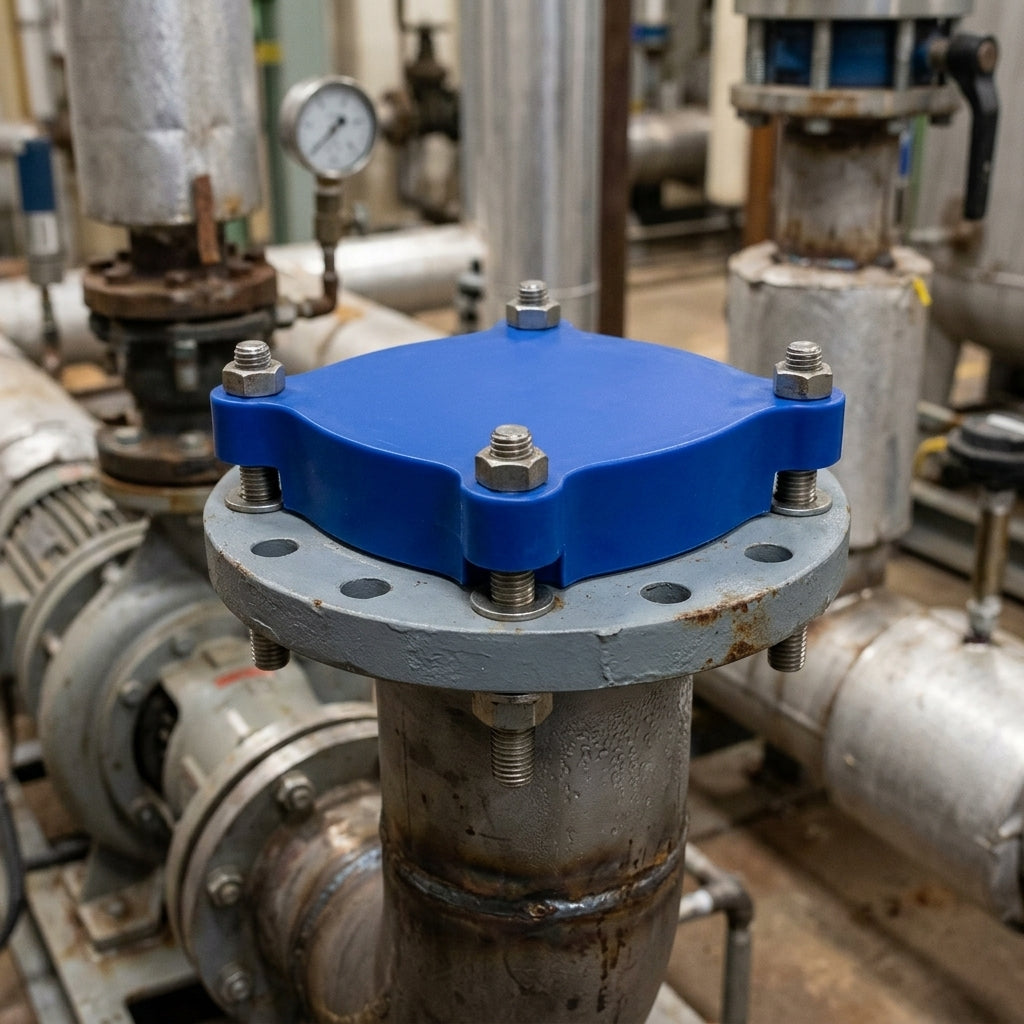

1" Class 300/600 Flange Stud Hole Insert - Blue LDPE
Not sure it's the right size? Ask a person.
Product details
Stud hole insert for 1" 300/600 class flanges, protecting bolt holes and gasket faces with four retaining ribs.
This insert plugs the four stud holes of a 1" 300/600 class flange, shielding the bolt holes and surrounding flange face from moisture, dirt, paint and oils during production, transportation, storage and maintenance. Moulded from LDPE plastic, it offers a quick, cost-effective alternative to full-face protectors and is widely used in oil and gas refining and hydraulic applications.
Key Features
- Four ribbed lugs engage the stud bolt holes for secure, tool-free fitting
- Protects flange faces, bolt holes and sealing surfaces from contamination
- LDPE material resists moisture, dirt, paint and mineral oils
- Low-cost, reusable protection during storage and transit
- Fast installation and removal without specialist tools
Specifications
- Nominal size: 1" (ANSI)
- Pressure class: 300/600
- Material: LDPE
- Colour: Blue
- Configuration: Stud hole insert with four retaining ribs
Applications
- Oil and gas refining pipework and equipment
- Hydraulic system flanges in production and storage
- Flange protection during maintenance and commissioning
- Transit protection for shipped flanged assemblies
- Temporary sealing of bolt holes on inactive flanges
Sizing questions
Which class do I need?
Use the pressure class stamped on the flange rim. Inserts are sized to the bolt holes of that class, so an insert for a different class may not fit.
How many do I need?
One insert per bolt hole. The bolt-hole count depends on the flange size and class — count the holes on your flange.
ANSI or DIN — which is my flange?
ANSI / ASME flanges are sized in inches (for example 4") with a pressure class such as 150 or 300. DIN / EN flanges are sized in DN (for example DN 100) with a PN rating. The standard and size are normally stamped on the flange rim.
